The Galaxy Gantry
🎯 Better accuracy and repeatability from direct drive technology and absolute encoders on all axes
💪 Higher metal removal rates possible through precision engineering
💥 High power, high-performance spindle for milling, drilling, and tapping
⚡ Better Surface Finishes from best technology in the industry
⏱️ Low Process Times, High Throughput from higher rapid feeds and accelerations
💲 Trustworthy Reliability. Consistent performance allows you to make money on tough jobs
⚙️ Easy to maintain. Preventative maintenance programs keep you running
♻️ Efficient chip removal with large dual chip conveyors and optimized chip collection.
🏗 Compact machine footprint for a large gantry. More X-axis travel in the same footprint as other bridge mills and portal machines

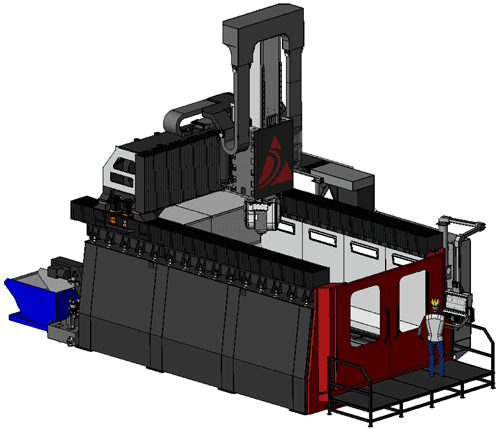

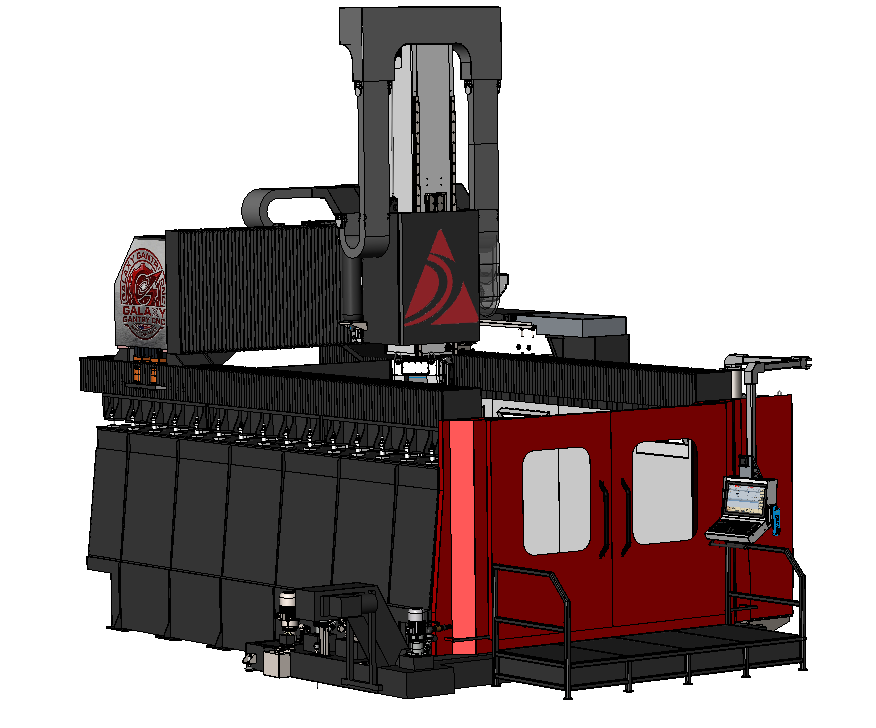

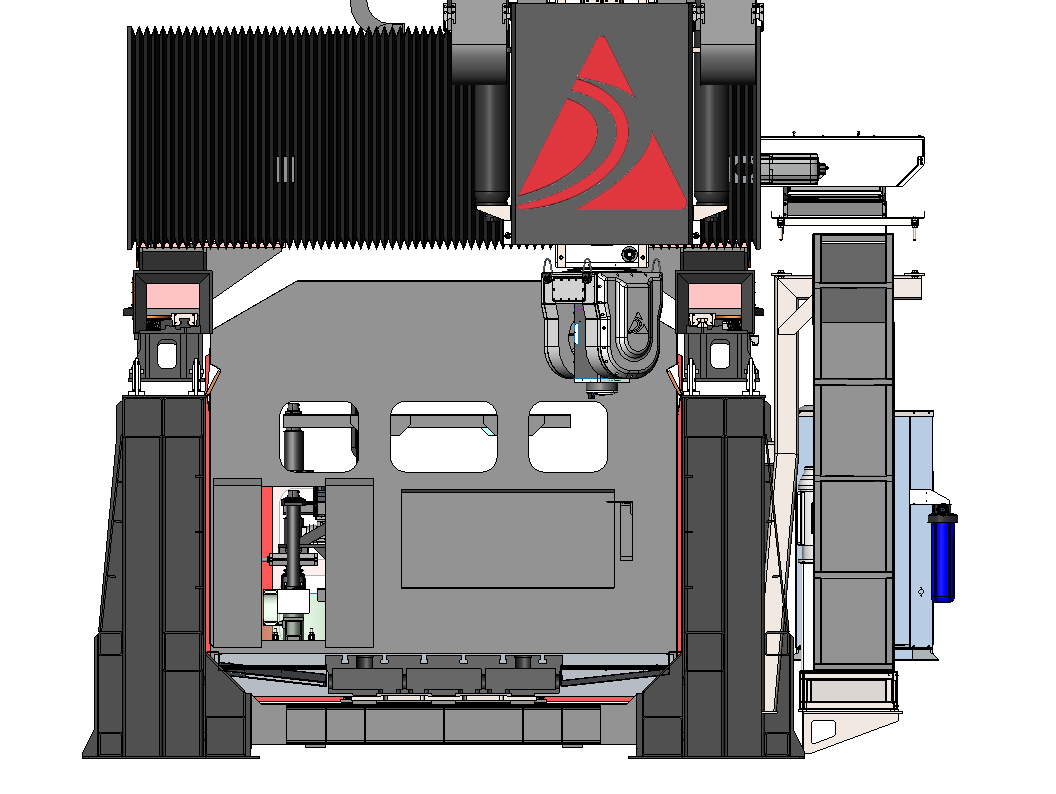

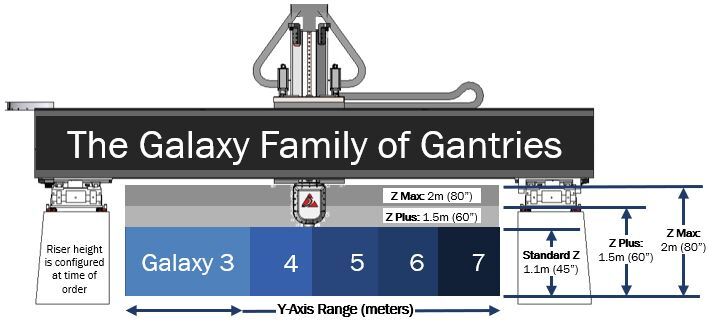

Galaxy 2
2 Meter Y-Axis Travel
Our most compact, yet powerful gantry. Installs as a single monolithic unit. Perfect for machining flight & space hardware, military hardware, automotive and agricultural power transmission components, and turbine components.
Galaxy 3
3 Meter Y-Axis Travel
The Galaxy 3 is perfect for machining anything that can ship over the road without a special permit when the spindle is in the vertical orientation. The 5 axis head allows finishing on 5 sides in a single setup. Commercial Airframe stringer and spar components are a perfect fit for the Galaxy 3.

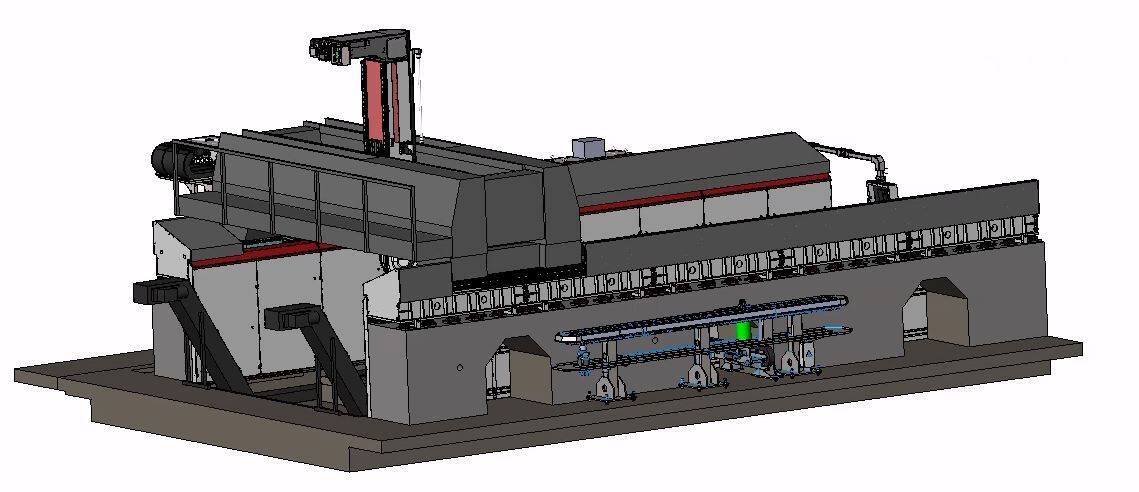

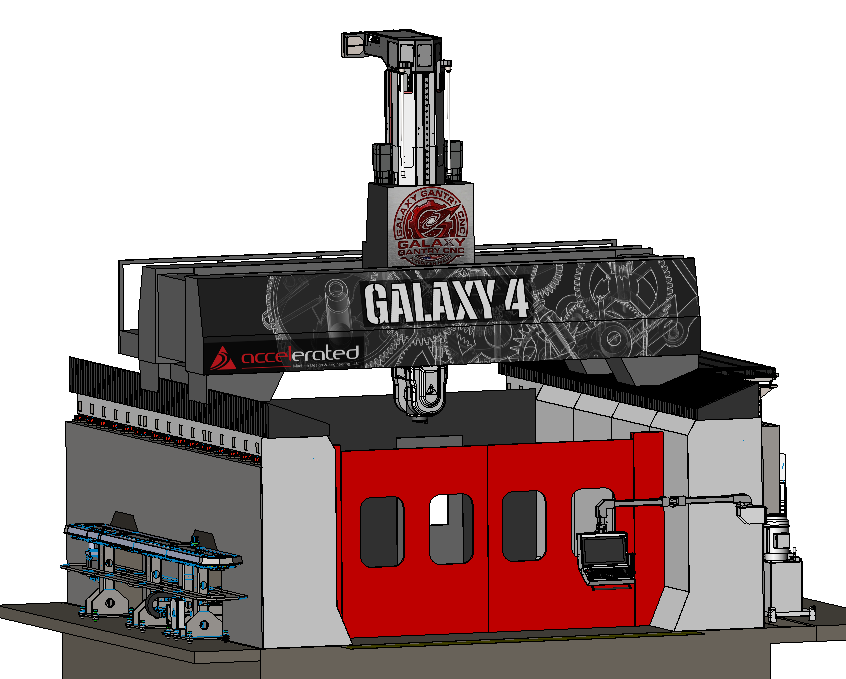

Galaxy 4
4 Meter Y-Axis Travel
The Galaxy 3 is perfect for machining all sides of any part that can ship over the road without a special permit, regardless of spindle orientation. It even has 4m (158") of Y-axis travel which allows for machining over size loads, or multiple parts side-by-side. Add a rotary table to optimize your machine for Submarine Bulkheads, hydro power turbines and impellers, deck turrets for ships, or slewing rings for tracked vehicles.
Galaxy 5
5 Meter Y-Axis Travel
The Galaxy 5 is ideal for large format components found in energy generation, off-highway vehicle frames, marine deck hardware such as comings and hatches, space vehicles & rocket components, and many more applications. Airframe components such as wing skins and bulk heads are well suited for the Galaxy 5
Galaxy 6
6 Meter Y-Axis Travel
The Galaxy 6 was design for heavy space launch vehicles and ground support equipment. Make quick work of Rocket rings, bulkheads, spars, and rocket engine fairings and housings by adding a rotary table to reduce the number of setups and machines needed. Ground support equipment such as towers, transport vehicle frames, and launch pads are easily machine to print on the Galaxy 6.

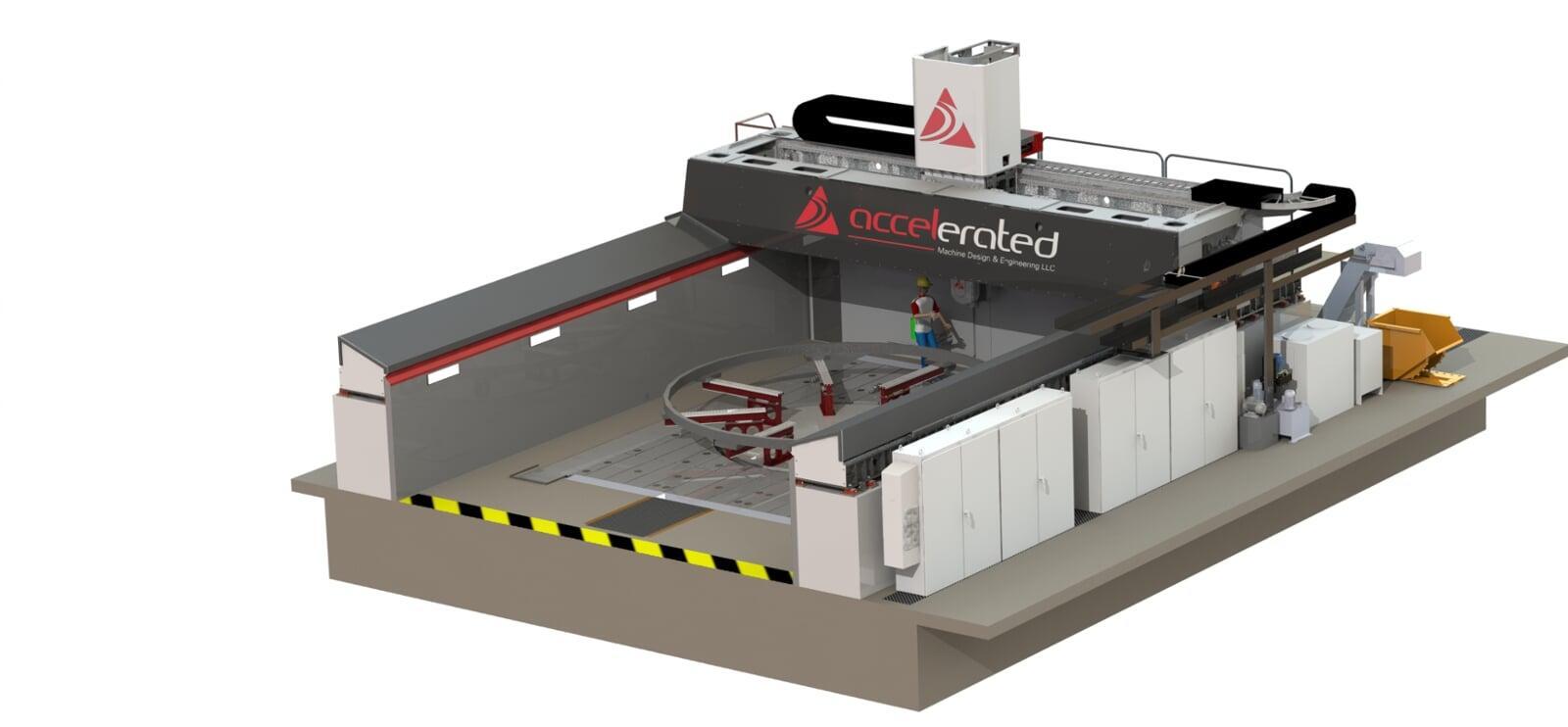

Galaxy 7
7 Meter Y-Axis Travel
The Galaxy 7 is the big daddy of them all! 7 Meter [275"] Y-axis travel will ensure that you can machine anything in industry today. Add a rotary table for maximum flexibility. Never turn down a project due to capacity again!
| Available | Travels | Feed rate | Feedback | ||
| Axis | Min | Max | Standard | Optional | TYPE |
| X-Axis | 3M [118"] | 40M** [1575"] | 20m/min [787ipm] | 40m/min * [1575ipm] | SCALE |
| Y-Axis | 2M [80"] | 7M** [276"] | 25m/min [1000ipm] | 50m/min [2000ipm] | SCALE |
| Z-Axis | 1.1M [45"] | 2M** [80"] | 25m/min [1000ipm] | 50m/min [2000ipm] | SCALE |
| A-Axis | +/- 105° | 30 RPM | 60 RPM | Encoder | |
| C-Axis | +/- 360° | 30 RPM | 60 RPM | Encoder | |
| Rotary Table | Ø1M [40"] | Ø3.66M | 120 RPM | 200 RPM | Encoder |
Engineered for high-speed machining of aluminum and composite materials, it also possesses the necessary rigidity, torque, and thrust force to handle steel and titanium components.
Higher rapid feeds and accelerations resulting in lower processing time and more throughput.
Our experienced machine tool engineers meticulously optimized the structure using cutting-edge analysis techniques, resulting in a machine designed for a high first natural frequency and low vibration. This optimization allows for greater gains, accelerations, and stability compared to other machines on the market, ensuring the Galaxy 6 operates smoothly and accurately without any chatter

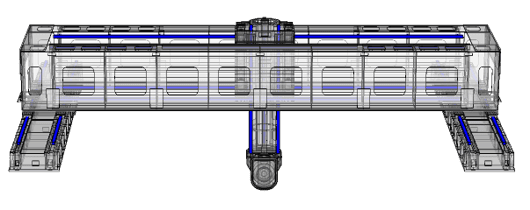

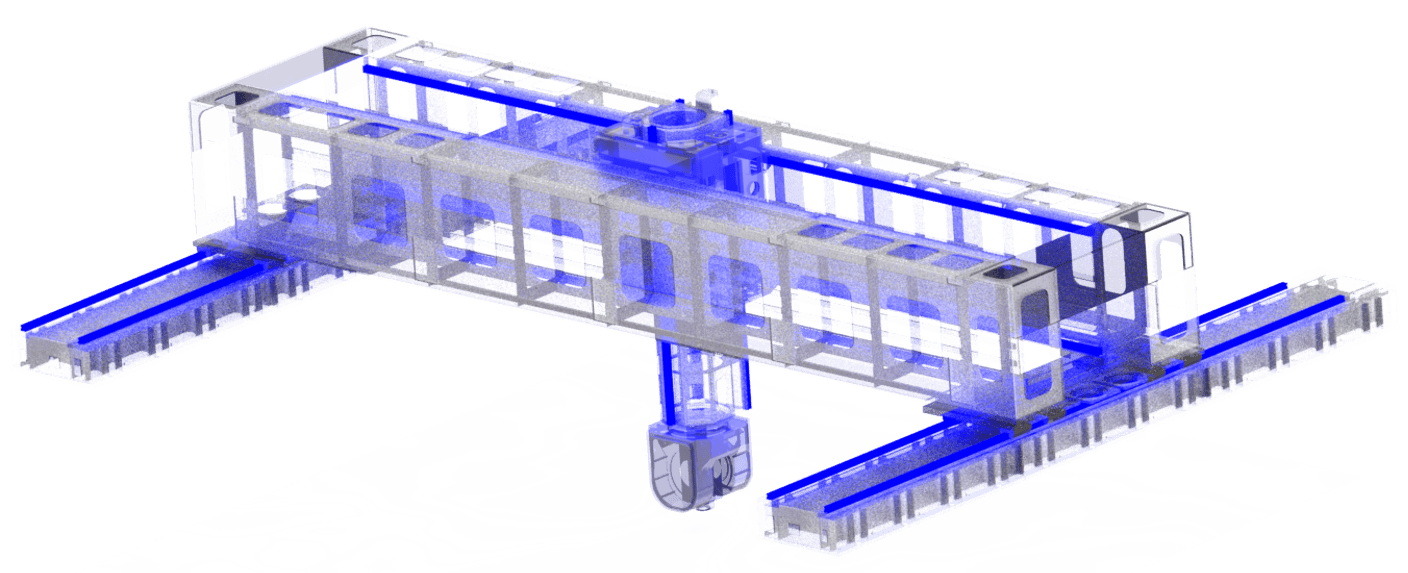

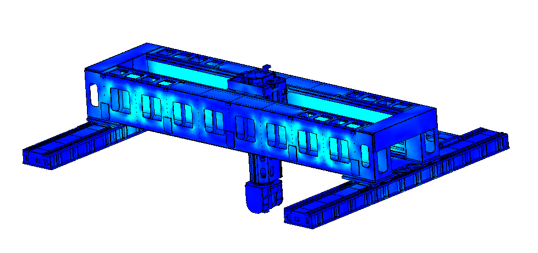

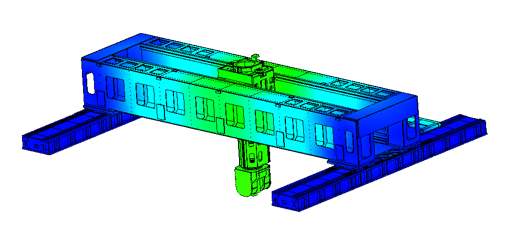

Machine structure was optimized using Finite Element Analysis to minimize distortion, vibration, and, increase dynamic stiffness. The symmetric structures ensure the machine does not distort with thermal changes.
The Cross Rail design eliminates rolling and sag commonly seen in standard gantry systems. As the saddle and ram travel along the Y-axis, the spindle face stays perfectly level, without tilting or rolling. Machining forces are evenly distributed, eliminating chatter and vibration even under heavy cutting conditions.

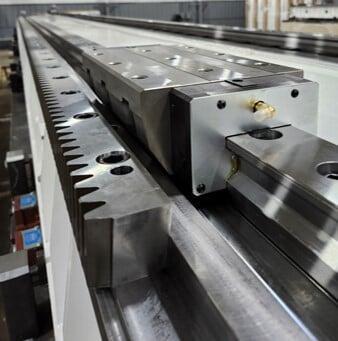

The Galaxy's meticulously engineered structural, guiding, and drive systems eradicate sluggish accelerations, slow speeds, and shaky positioning often seen in conventional large gantries.

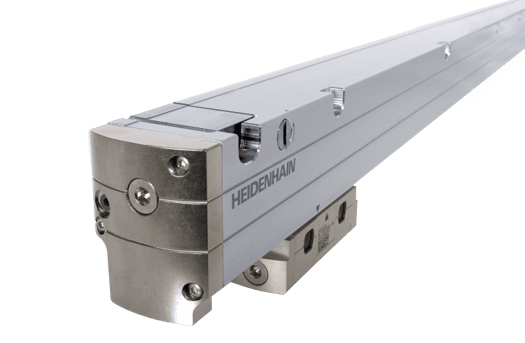

Linear axes utilize absolute encoders. This eliminates the need for homing each time the machine is powered on and reduces the time required to reach production each day.
Thermal expansion of long axes due to temperature changes in your facility are minimized by using scale encoders on each linear axis.

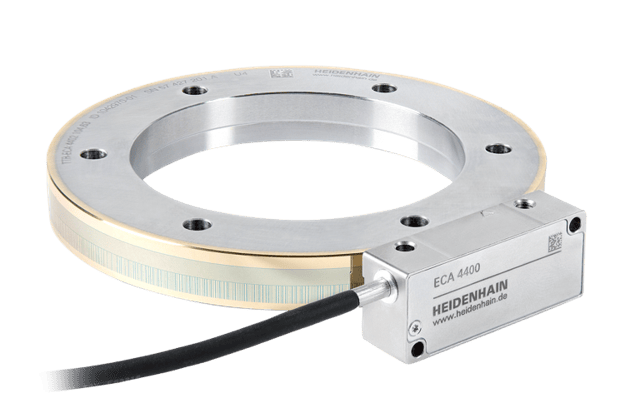

Rotary Axes are directly coupled to ECA4000 encoders with high accuracy and large diameters for higher resolution. 25,993 lines per revolution along with advanced encoder interpolation allow for high dynamic response.
With these advanced features, the Galaxy stands out as one of the most precise large machines available for production today.
The Galaxy’s innovative Direct Drive motors are engineered to reduce maintenance and wear commonly found in conventional gear or belt drives, boosting rotary acceleration and enhancing spindle positioning by eliminating any lost motion caused by backlash.
Experience the holding power of the Galaxy A and C axis hydraulic clamps, providing exceptional clamping force for locking in place during heavy cuts. Unlike traditional Hirth couplings, our hydraulic clamps allow for infinite clamping at any orientation, without the limitations of fixed degree increments. Maintenance-free and long-lasting, our A and C clamps offer durability and reliability.
Liquid-cooled motors and liquid cooled head frame ensure thermal stability, while delivering superior accuracy, outperforming the competition. Elevate your manufacturing process with our advanced technology and precision engineering.

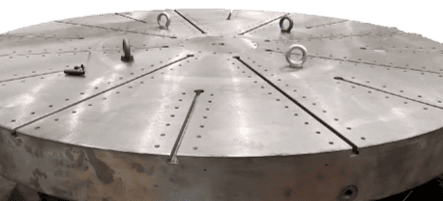

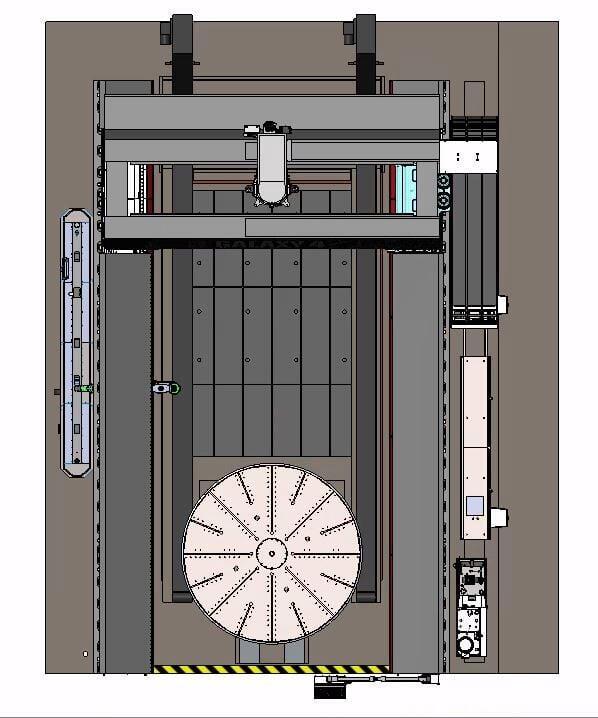

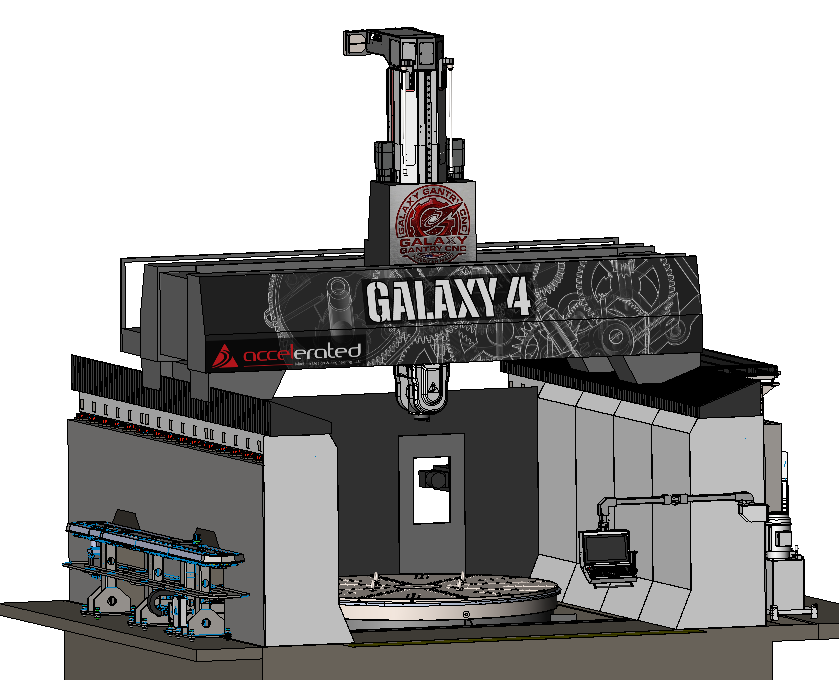

Make round parts? Add an Optional Rotary Table
3 Rotary Modes, 1 Machine!
Experience the versatility of the Galaxy with 3 Rotary Modes in 1 Machine.
The powerhouse rotary table is designed to handle large rings with diameters up to 7500mm (295” or 24’). The rotary table ensures precise milling, drilling, and turning operations of large diameter rings or round parts.
Milling Mode securely clamps the rotary table, guaranteeing the rigidity necessary for accurate milling and high-speed machining.
In Turning Mode, the Galaxy transforms into a VTL, offering options to operate in constant RPM mode or constant SFM mode.
Utilize Mill-Turn Mode for effortless indexing of parts or achieve exceptional interpolation with the Table axis integrated within the interpolated path.
Our rotary table effortlessly accommodates parts weighing up to 30,000kg. Thanks to the temperature controlled base, thermal expansion is minimized, ensuring stability and precision during extended, heavy-duty cutting operations. With a lubricated bearing and gear system, longevity and durability are guaranteed.
The best machine builders in industry bring their years of machine tool experience to ensure each system is the highest quality possible.
The Galaxy Gantry is ideal for handling the largest components in industry.

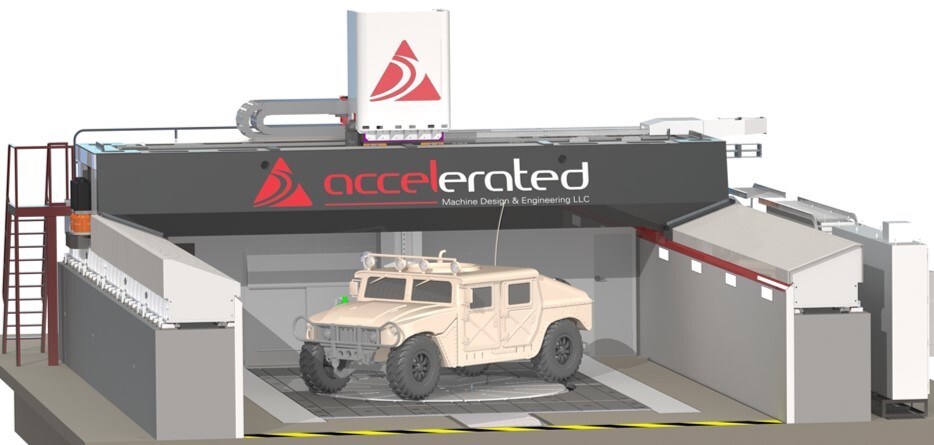

This image displays a full-size HMMWV mounted on the 3.66M rotary table.
T-slotted tables offer flexible configurations to meet any required setup. Built for floor-level access, this table enables simple and efficient part loading and unloading, offering operators unmatched convenience and ergonomics.
The Latest CNC Technology
The Galaxy is ready to revolutionize the future with its cutting-edge Siemens SinumerikOne or Heidenhain TNC 7 CNC controls.
Experience advanced features like chatter and vibration reduction, along with faster accelerations for enhanced part production and superior surface finishes. Achieve precise volumetric accuracies thanks to integrated CNC, servo drives, and feedback scales.

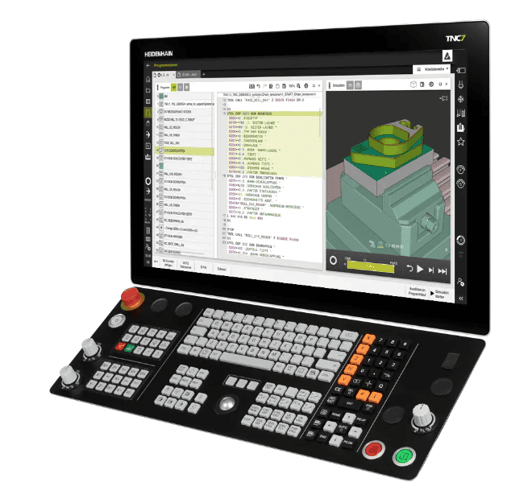

A 24” touch screen enhances operator efficiency by presenting programs, process data, and graphics in a user-friendly layout. Customize the screen to suit individual preferences for an optimized user experience such as left-hand or right-hand screen layout or dark mode. Safeguard against collisions and mishaps by simulating toolpaths on the HMI. The state-of-the-art conversational tool & material library ensures quick and easy programming when offline CAM systems are impractical.
Hand Pendant for the control you need
With a Hand Pendant that functions seamlessly throughout the workzone, setup and first part runoff become effortless.
Embrace the advanced control system and unlock next-generation results.

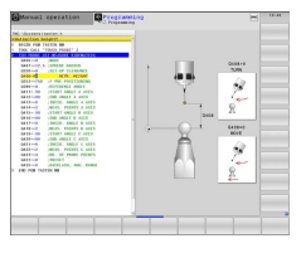

Kinematics Optimization for 5 Axis head
Automatic probing compensation to calibrate rotary head axes. Tremendous improvement over Fanuc kinematic setting.

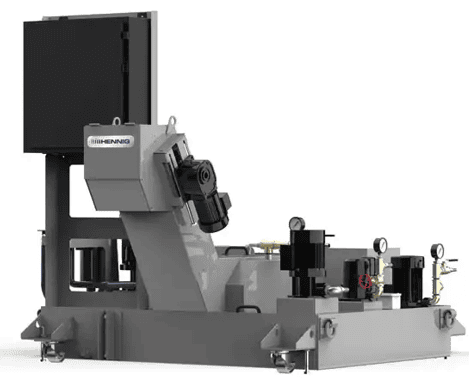

Exclusively with Hennig Chip System
The Galaxy’s Hinge Belt chip conveyor system stands out as the top choice on the market for handling a wide range of materials. While it may come at a higher price point compared to chip flumes or augers, it proves to be a valuable investment for job shops that work with diverse materials.
Utilizing high-pressure thru-tool coolant not only enhances tool longevity but also significantly boosts Material Removal Rates (MRR) compared to systems lacking this feature. Moreover, it enables precise deep hole drilling with the use of thru-tool coolant.
Implementing advanced filtration technology results in cost savings by reducing filter element maintenance expenses, prolonging coolant lifespan, and cutting down on tool and coolant expenditures.
The system’s below-floor design not only enhances reliability but also minimizes maintenance requirements, offering a seamless and efficient operation.
80 Pocket Tool Changer
Increase walk away time with additional cutting tool storage. Load duplicate tools for lights out machining.
AC Head
2-Axis head to provide continuous 5 axis machining or 3+2 heavy duty machining. Features direct drive torque motors, water cooling, and feedback scales
Part Measurement Probe
Reduces set up time, scrap rate, and ensures part quality prior to work pieces being removed from the machine
Tool Length Measurement Probe
Measure tool length without touching off on the part. Eliminate crashes and scrapped parts due to incorrect tool length
High Pressure Coolant System
Unlock improved material removal rate, improved chip evacuation, and increased tool life through use of high-pressure tool coolant. Recommended for drilling applications to improve chip evacuation in holes. This option in conjunction with Through Spindle Coolant option is recommended for hole making machines. This option includes 1000PSI pump, 8 GPM Brinkman Pump and cyclonic filter.

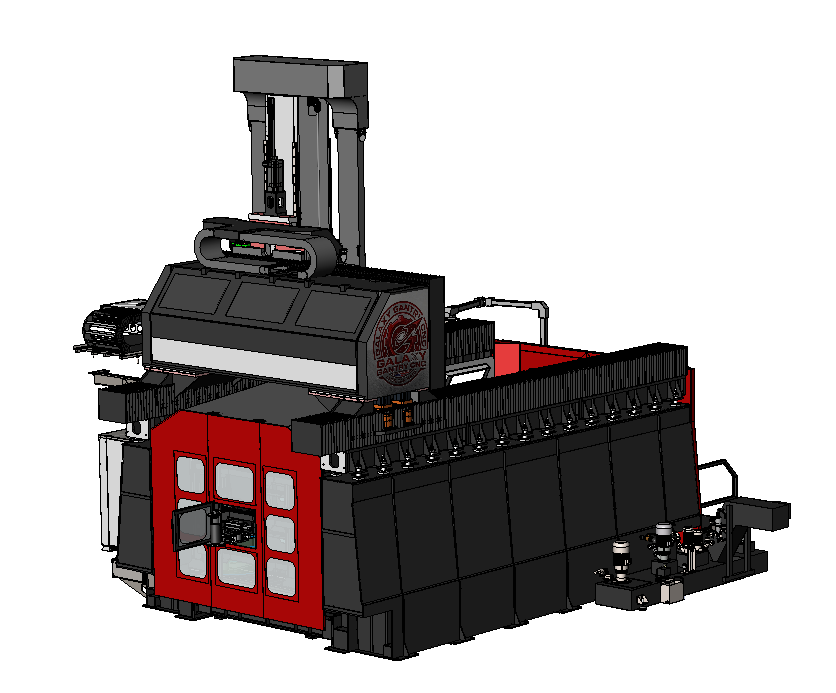

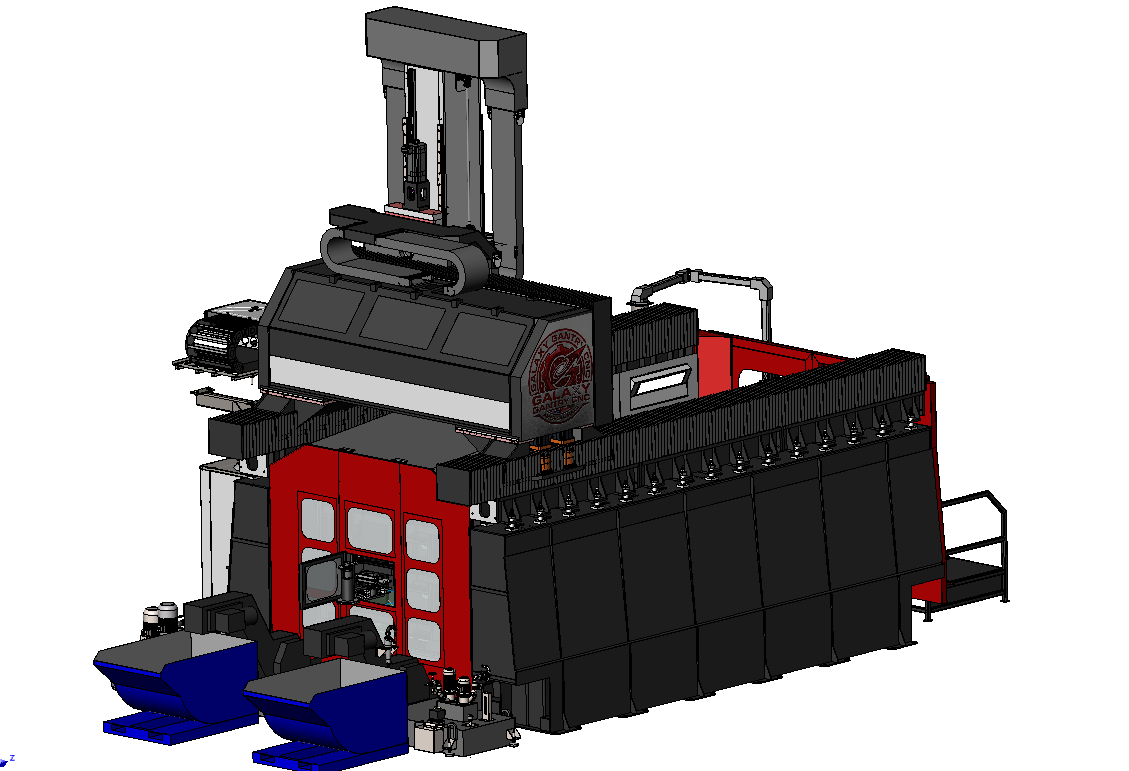

Dual Hinge Belt Chip Conveyors
Upgrade from chip flushing to a chip conveyor. The hinge belt conveyor is a proven heavy duty conveyor solution for a variety of materials, chip types, and chip loads. Includes Variable Frequency Drives that prevent overloads due to chip jambs. This option also includes a jamb recovering reversing feature to reduce the time required to recover from chip jambs.
Disk Filtration
MReduce your downtime due to coolant issues and reduce your filter element cost by adding the disc filtration system. The disc filter includes a micronic weave stainless steel permanent media filter and a backwash manifold. This option improves coolant performance and extends the life of media filters. This reduces your operating cost and reduces the amount of maintenance required for the coolant system
Work Zone Lighting
Add Enclosure and Cross Rail Lights to illuminate work zone and spindle. Heavy duty LED lights are IP67 and engineered to reduce chip impact and coolant exposure.

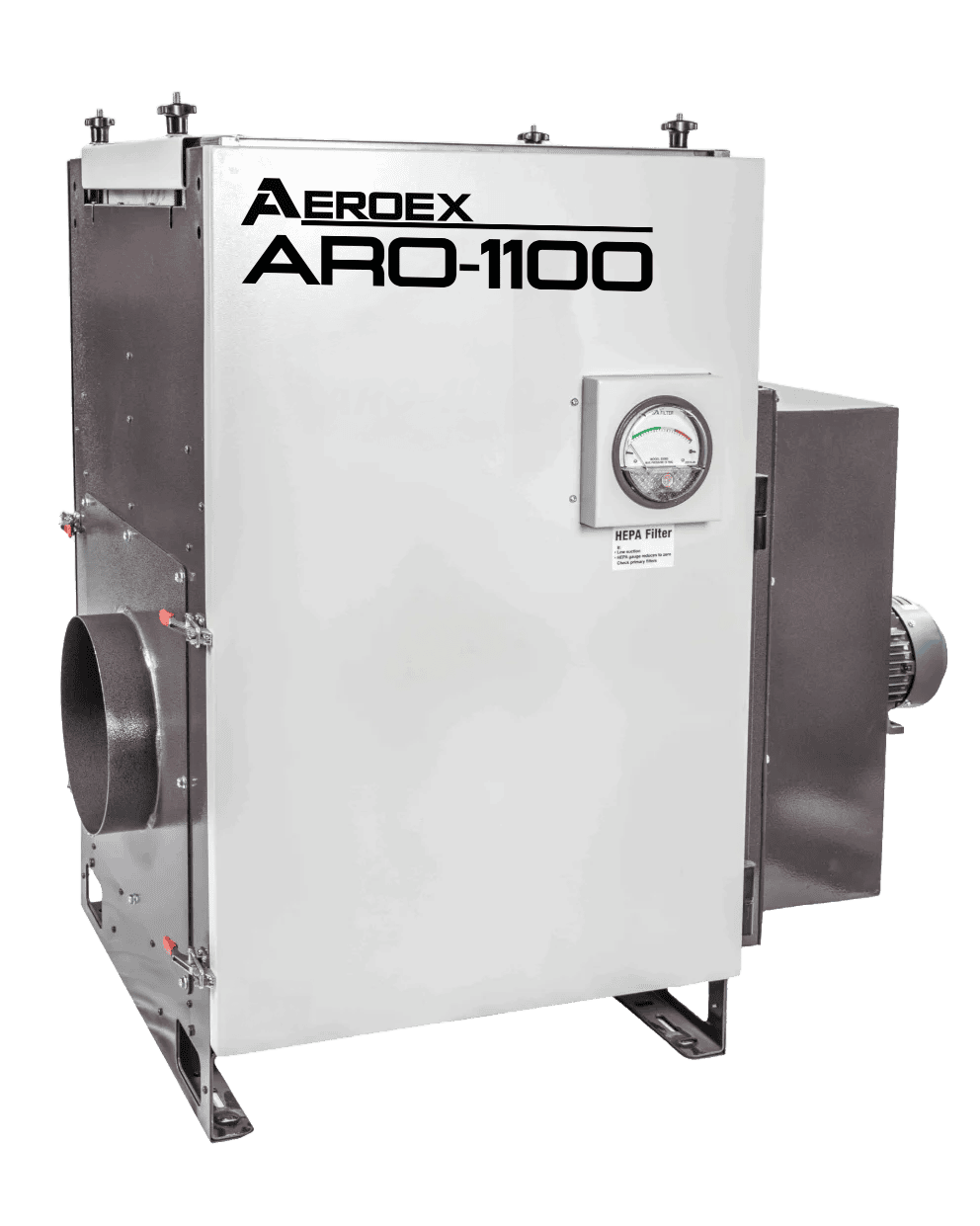

Mist Collector / Smoke Extractor
Capture and clean airborne mist and smoke and prevent smoke and mist from filling your factory. This option improves air quality in your factory and extends the life of the machine by reducing contamination on the surfaces of way covers and machine components
Conversational CNC
Conversational Tool and Material Library. Simulate tool paths on the HMI to prevent colistions and crashes. Generate programs quickly from 2D and 3D Geometry
Tool Breakage Detection
Rapid capacitive tool breakage detection allows for fast tool monitoring for overnight runs or lights out production, without the time-consuming length measurements
Vison Tool Inspection
Save time during tool inspection without removing the tool from the machine or tool magazine. Instead, simply perform your inspection on the control. Software options let you perform inspections at a later time, even to some extent offline. The camera takes close-up images of each tooth as well as detailed panoramic images of the entire tool circumference.
Spindle Camera
Self cleaning camera with integral lighting. Mounted to focus on the cutting tool from above the work zone. Not available with all spindle and head combinations
Thru Spindle Coolant (TSC)
Recommended for hole-making applications. This option increases tool life and improves MRR by improving chip evacuation and eliminating double cutting of chips
Oil Skimmer
Extend the life of cutting tool coolant and improve spindle life by adding an oil skimmer to the coolant system. The Oil Skimmer option removes oil and sludges from coolant with a disc skimmer
Coolant Monitoring System
Notify operators of non-conformances with the coolant system by adding his option. Low & high level detection, dirty filter detection, and tank temp detection are added with this option. Notifications and warnings are displayed on HMI
Thermal Stabilization Package
Reduce spindle and machine growth and reduce machining variation with this option. Thermal Stabilization package includes a spindle chiller, spindle cooling circuit, drive cooling circuit, and coolant chiller for the coolant tank and filtration system. This option also extends the life of coolant by reducing the losses due to evaporation
AutoLube System
Lube system dispenses an optimized amount of grease to each machine component to extend the life of the machine. Auto lube system includes grease pump, plumbing, and felt gears for rack and pinion drives. Low grease alarm notifies the operator when it’s time to replenish grease cartridges. Designed for greases up to NLGI 2

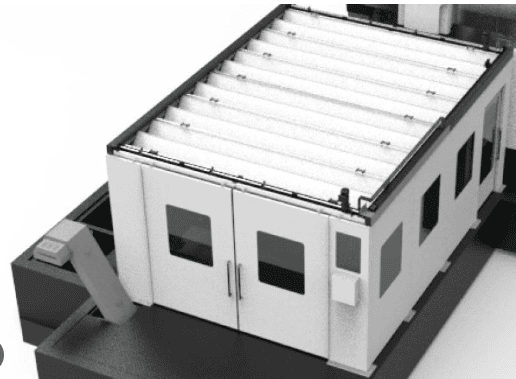

Retractable Top Enclosure
Enclose the entire workzone with a retractable top enclosure
